Hex self drilling Screw fitted with #5 drill points are engineered for heavy-duty fastening on thick metal sheets and sandwich panels, widely used in steel structure workshops, roofing systems, wall cladding and cold storage panel installation.

Unlike smaller drill point screws, the #5 drill bit delivers stronger drilling capacity. It can penetrate thicker base steel plates efficiently without pre-drilling holes. Sandwich panels, composed of metal facings and insulation core, are the typical application target. This screw firmly connects outer metal panels to supporting steel purlins, locking insulation panels steadily for building envelope construction.

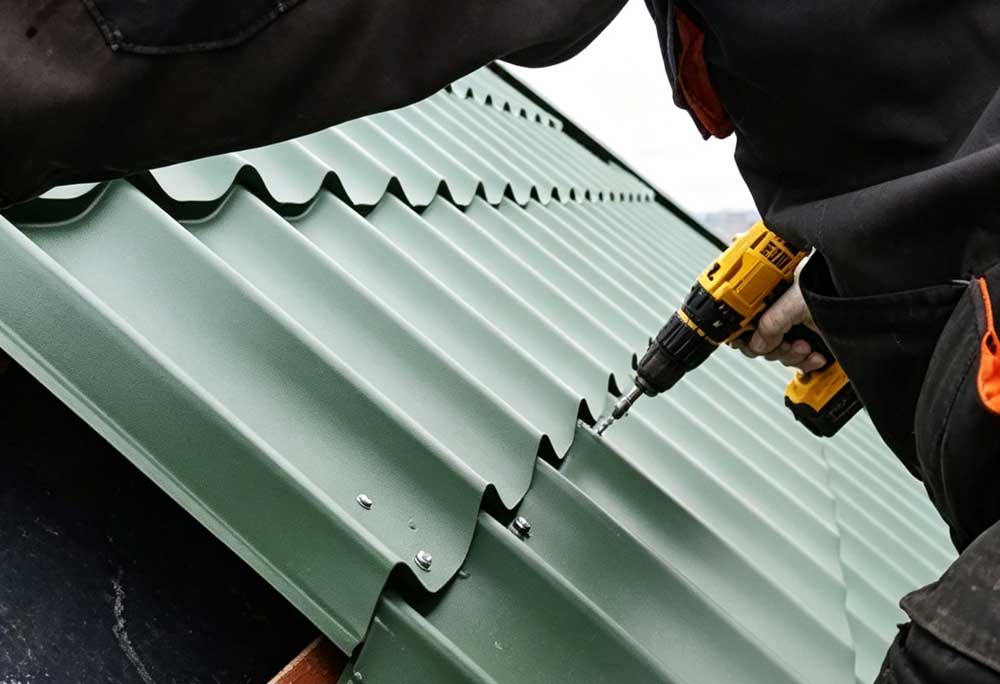

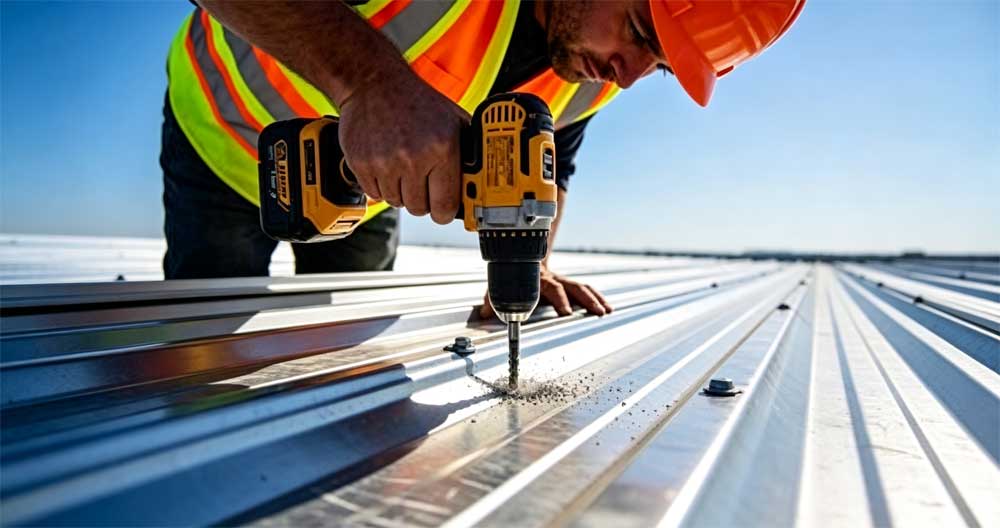

When using these screws, several key points need attention. First, confirm the total thickness of the substrate to match the screw length, ensuring full thread engagement after drilling. Second, maintain a steady vertical driving angle. Tilting will cause bit breakage or poor sealing. Third, control the torque of electric drill. Excessive torque may strip threads or deform panel surfaces; insufficient torque leads to loose fixing and water leakage risks.

Also, select proper surface coatings according to service environments. For coastal areas, anti-corrosion coatings like Ruspert or mechanical galvanizing are recommended to resist salt spray corrosion. Avoid over-speed drilling which generates high heat and dulls the drill point quickly.

These #5 hex drill screws simplify installation of thick-plate and sandwich panel projects, improving construction efficiency while securing long-term fastening reliability.
